What is Screw Chiller?





A screw chiller is used in several industrial operations and applications. It is different from other chiller compressors and uses a screw compressor to function. The state of this chiller unit from the evaporator is the gas refrigerant. And after the compressor is compressed, it becomes a high-pressure state and high temperature. Now, the compressed gas refrigerant is made to cool and condense in the condenser under constant pressure.



Advantages of Screw Chiller

Efficiency

Screw chillers are renowned for their high energy efficiency. The continuous compression process they employ results in smoother operation and reduced energy consumption compared to traditional reciprocating compressors.

Reliability

The design of screw chillers minimizes the number of moving parts, leading to improved reliability and lower maintenance requirements. This makes them ideal for industries that demand uninterrupted cooling.

Capacity control

Screw chillers excel in part-load efficiency due to their capacity modulation capabilities. They can adjust their cooling output according to the actual cooling demand, optimizing energy usage.

Quiet operation

The screw compressor design generates less noise and vibration, creating a quieter working environment in industrial settings.





First 123 Last
Why Choose Us?


High quality

Our products are manufactured or executed to very high standards, using the finest materials and manufacturing processes.

Rich experience

Dedicated to strict quality control and attentive customer service, our experienced staff is always available to discuss your requirements and ensure complete customer satisfaction.

Quality control

We have professional personnel to monitor the production process, inspect the products and ensure that the final product meets the required quality level standards, guidelines and specifications.

24h online service

We try and respond to all concerns within 24 hours and our teams are always at your disposal in case of any emergencies.



Working Principle of Screw Chiller





The compressor, that is the cooling unit will vaporize at small gravity and low temperature. The cooling agent move into the piston, then passing through the mechanical chamber that reduces gas volume. The cooling gas is compacted into high-pressure gas and high temperature.

From the dissipate, the gas passes to the cooling chamber, the high pressure and temperature of the cooling gas in the airbag with the chilling liquid for temperature conversation, the heat transmission to the freezing water away, even though cooling agent is compacted into high vacuum fluid.

The vacuum liquid from the compressor is regulated through a thermostatic widening valve that maintains the temperature and passes into the evaporator. At the liquid converter chamber, the minimal vacuum fluid cooling agent enthralls the warmness of the cooled water and disperses the cooled water to chill down, and turns to the anticipated cool water, fit for consumption.

The evaporated cooling agent is re-drawn by means of the condenser, and liquidated into the cooling chamber, thus, it’s disseminated all over again, thus, refrigerating the cool liquid.

The water cooling starts from the entry piece to chilled water, entering the interior fan loop, fickle air capacity ac, and additional maneuvers in the internal and incoming air heat conversation in progress, the liquid owing to the concentration of internal air temperature.

Then the temperature increases, and the interior air over the internal temperature converter subsequently the heat drip, which the air flow is determined, then passes to the chamber, in that way plummeting the internal breeze hotness. Also, the temperature rises later the cool h2o in the thrust underneath the recirculate into the unit. Consequently, sequence to attain the drive of incessant cooling.



7 Reasons To Choose a Screw Chiller


Occupy very less space for installation of plant
The screw chiller works on screw compressors and usually requires very less space to install them in commercial and residential buildings. The compressor is the major bulk unit and they have very less electronic control boxes. The pipes and the main transporter of water and they do occupy very less space than the duct as in air conditioner.

Cools efficiently according to building capacity
The screw chiller is most efficient to function according to the building capacity and never over cools your internal environment or internal building space. The source of coolant is the water and it has more efficiency to cool then the air.

Energy efficiency
When you use screw chillers, they are energy efficient than any other technology in refrigeration/heating/cooling plants. Since, they can control the level of optimal cooling and never over cools according to a building capacity.They consume less energy to function due to the compressor type and its mechanism.

Emit very less noise while functioning
The water is the main source inside the screw chiller compressor. The water present inside the compressor totally reduces the vibration effects of the plant. This is a natural mechanic and the functioning of screw chiller does not generate much noise within the short run or long run functioning. The motor and screw do function with less noise such that the compressor noise will not come outside of the plant, where it is installed.

Less maintenance works
The screw chiller compressor has very less spare parts and may function for the long run efficiently.‘both’ the mechanical side there is very less maintenance and you may call the service provider for a regular chiller checkup.

Excellent for high-rise building
When comes to hvac, the high-rise building which may be for commercial or residential purpose always think about cooling efficiency and energy saving with reliability of a chiller. The screw chiller is the excellent cooling system to install in high-rise building to use the optimum of water based cooling. The use of pipe saves your building space and it is perfect for connecting entire building.

The best compressor for long-run
When you install the screw chiller, you can use them for the long run without any disturbance. The screw compressor works efficiently and never become troublesome while functioning for long time.You can alter the size and capacity if necessary and avail the service from your chiller manufacture to assemble and install for you.



Application of Screw Chiller
Water-cooled Box Type Chiller

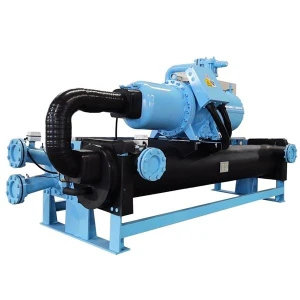

Industrial Chiller Machine
Water Cooled Screw Chiller With Water Pump And Water Tank
Water Cooled Screw Type Water Chiller

Air conditioning
Screw chillers are extensively used for air conditioning in commercial buildings, hotels, hospitals, shopping malls, and other large spaces. They provide consistent and energy-efficient cooling, maintaining comfortable indoor environments.

Industrial processes
Many industrial processes require precise temperature control to ensure product quality and process efficiency. Screw chillers are used in industries such as pharmaceuticals, chemicals, food processing, plastics, and textiles to cool equipment, raw materials, and finished products.

Data centers
Data centers generate significant heat due to the operation of servers and networking equipment. Screw chillers are employed to maintain optimal temperatures within these facilities, ensuring the proper functioning of the hardware and preventing overheating.

Manufacturing
Various manufacturing processes involve heat-intensive operations. Screw chillers help regulate temperatures in these processes, enhancing product quality and reducing production downtime.

Cold storage
Screw chillers are used in cold storage facilities for preserving perishable goods like food and pharmaceuticals. They help maintain consistent low temperatures, preventing spoilage and ensuring product integrity.

Beverage industry
Breweries, wineries, and beverage production facilities require precise temperature control during fermentation, storage, and bottling processes. Screw chillers play a crucial role in maintaining optimal conditions for these processes.

Hospitals
In healthcare settings, screw chillers are used to maintain temperature-controlled environments for medical equipment storage, laboratories, and patient comfort areas.

Power plants
Power generation facilities require cooling for various components, including generators and transformers. Screw chillers provide efficient cooling solutions in power plants to maintain equipment performance and longevity.



What are the Optimized Maintenance of Screw Chillers

Check the electrical system before starting up
Check whether the electrical load is required for use; whether the maximum working load of the unit can bear.Check whether the main power cord of the unit has a short-circuit switch;confirm that the external wiring is tightly installed, the wiring is correct, and the contact points are free from corrosion, rust, dust accumulation, and other phenomena.

Inspection of compressor and refrigerant piping system
It should be confirmed that the oil level of the compressor is at a normal value;confirm whether the compressor suction, air stop valve, valve on the pipe, angle valve, ball valve, etc. Are open;check the high and low pressure values of the compressor. The lubricating oil preheating time can reach more than 8h.

Four items that should be checked for normal operation
Check whether the water flow conditions of the cold water pump and the cooling water pump meet the requirements;check whether there is any abnormal error on the display;there is no abnormal noise or vibration after the unit is running,it should be measured whether the operating current of the unit is within the normal range.

Pay attention to icing protection
When the unit is determined to stop running for a long time, the water in the evaporator and condenser should be removed and blown out.When the unit is operating in an environment of 0 degrees and below, antifreeze should be added and placed to freeze.

Strict water quality management
Inspect the cooling water quality to prevent scaling and corrosion of pipes, and regularly check the water quality.

Daily maintenance and management are refined
When there is sediment and algae in the cooling water of the equipment pipeline, pay attention to maintenance, cleaning, and cleaning, because this will cause the efficiency of the unit to decrease, and the pollution can be solved by the agent or special cleaning fluid. Water quality inspection and analysis should be done every month to use chemical solutions to corrode metal pipes.




Method for Debugging Screw Chiller

01/

Screw compressor
Screw compressor is a very important component in the unit. The quality of the compressor is directly related to the stability of the unit.

02/

Condenser and evaporator cleaning
Since the cooling water of the water-cooled condenser is an open circulation circuit, tap water is generally recycled through a cooling tower.

03/

Calibration of safety valve
According to regulations, a safety valve should be installed on the high-pressure side of the unit, that is, the condenser body. Once the unit is in an abnormal working environment, the safety valve can automatically release the pressure to prevent possible high-pressure injuries to humans. Therefore, the regular verification of the safety valve is very important for the safety of the entire unit.

04/

Charging of refrigerant
If there are no other special reasons, the general unit will not produce a large number of leaks. If a certain amount of refrigerant leaks due to improper use or after maintenance, you need to add refrigerant again. When filling refrigerant, pay attention to the brand of refrigerant used by the unit.

05/

Drying filter replacement
Dry filter is an important part to ensure the normal circulation of refrigerant. Because water and refrigerant are incompatible with each other, if the system contains moisture, it will greatly affect the operating efficiency of the unit. Therefore, it is very important to keep the interior of the system dry. The filter element inside the drying filter must be replaced regularly.

06/

Change lubricant
After long-term use of the screw chiller, the oil quality of the lubricating oil will deteriorate, and the impurities and moisture inside the oil will increase, affecting the cooling effect of the chiller. Therefore, the oil quality should be regularly observed and checked. Once the problem is found, it should be replaced in time, and the oil grade to be replaced must conform to the technical data.



Features of Screw Chiller

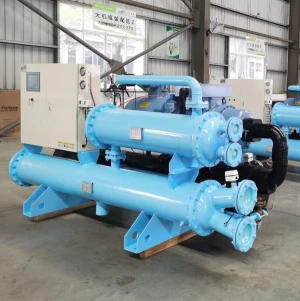

Water Cooled Heat Reclaim Chiller

The evaporator and condenser of the screw chiller have been integrated into a whole, which no longer takes up additional space. In addition, the unit is simple and does not require a large maintenance space, so the area of the machine room can be greatly reduced.

Since the vibration of the screw type industrial chiller is very small, the foundation is simple. The machine room can be located close to the place where cooling is required, or it can be placed on each floor. Especially in high-rise building air-conditioning systems, the pump lift can be greatly reduced, reducing installation and operating costs.

The screw-type chiller is installed once during the installation of the whole unit, and 100% test machine test is performed before leaving the factory. Therefore, it is easy to connect water and electricity, reducing the installation and commissioning workload, and simple and safe operation. Compared with piston chiller, it has flexible adjustment, simple structure, less wearing parts, no suction, exhaust valve, insensitive to wet stroke, and extremely low failure rate.

The screw chiller uses multiple refrigeration circuits. Two compressors or multiple compressors have a cycle control program for starting and stopping, which can balance the load and prolong the service life of the unit. If one of the circuits requires maintenance, the remaining circuits it can still operate normally and has a backup function.

Screw-type chiller can be equipped with environmental protection and energy saving heat energy recovery device according to needs, which can produce free hot water during refrigeration. Simple installation without cooling water tower. It can also perform intelligent program control according to load changes: 100%, 75%, 50%, 25% capacity adjustment, saving energy consumption.

Generally, when the heat pump unit is running, the pressure in the working condition will be relatively large. At this time, it is more suitable to use the screw chiller. Due to the low steam temperature of the screw-type consumables, the condenser fouling situation is much lower than that of the piston chiller, which helps maintain high heat transfer efficiency and operating stability.

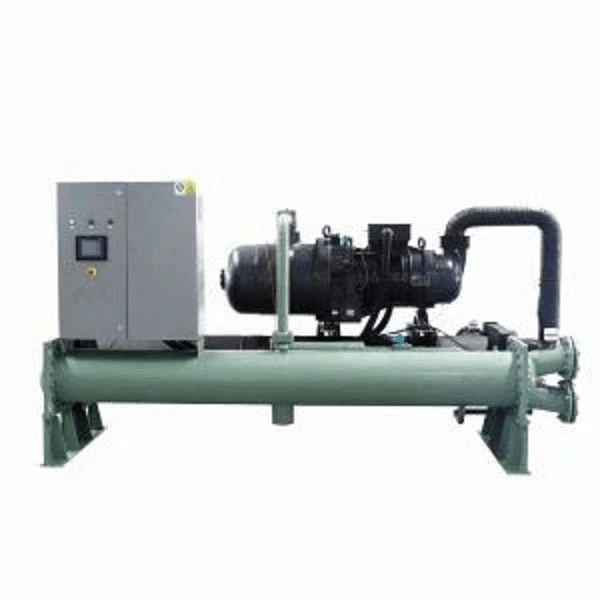

productcate-600-600




FAQ



Q: What is the difference between screw and centrifugal chiller?

A: Working: Screw chillers: The electric motor directly meshes with the main rotor and auxiliary rotor to rotate at low speed. Centrifuge chillers: The electric motor drives the impeller to rotate at high speed through a pair of speed increasing gears.

Q: What is screw or scroll chiller?

A: The two types of air cooled chillers are scroll compressor air cooled chillers and screw compressor air cooled chillers. Scroll compressors are used for the smaller air cooled chillers, and screw compressors are used for larger air cooled chillers and have a variable speed drive option for increased efficiency.

Q: What is the difference between reciprocating and screw chillers?

A: With a relatively high compression ratio and few moving parts, screw chillers are compact, smaller and lighter than reciprocating and centrifugal chillers of the same cooling capacity. These also offer quieter, vibration-free operation and are well known for their robustness, simplicity, and reliability.

Q: Which is better rotary chiller or screw chiller?

A: The screw compressors have an ability to operate at 30 compression ratios that allows much efficient operation than the reciprocating compressor. Typically chiller efficiency is between 0.7 to 0.8 kw per ton, making rotary chillers more efficient than comparably sized reciprocating but less efficient than centrifugal.

Q: What is the difference between screw and centrifugal?

A: Centrifugal compressor is dynamic machine (constant pressure) which are meant for high flow (approx. 2000 cfm & more) and medium pressure whereas screw compressors are positive displacement (constant flow) machine and are more economical for upto approx. 2000 cfm.

Q: How does a screw chiller compressor work?

A: Usually, the male rotor connects to the motor, acting as the driving rotor, while the female rotor is driven. As the two rotors rotate, volume in their grooves reduces thereby compressing the refrigerant.

Q: Is a screw chiller positive displacement?

A: Screw compressors, also known as rotary compressors, are positive displacement compressors where the gas is compressed by direct volume reduction between rotating screws. Screw compressors are available in several designs including single screw or twin screw.

Q: What is the capacity range of a screw chiller?

A: Screw chillers are available with capacity ranging from 30 to 800 tons. Screw chillers typically maintain design efficiency (kw/ton) at partial loads. The screw compressor can vary capacity in response to changing load, from 20 percent to 100 percent of capacity.

Q: Why is a screw compressor better?

A: The continuous duty function of a screw compressor means crucial components of the compressor will not wear out no matter the condition. Screw air compressors are easier to maintain as some of these machines have up to 70% less parts which can result in lower maintenance costs.

Q: What is chiller screw compressor?

A: Screw compressor chiller. Screw compressors are used for both water cooled and air cooled chillers. With water cooled type the compressor is on top of the chiller and with air cooled type the compressors is under the chiller. Indoor water cooled chillers will often be insulated whereas air cooled may not be.

Q: What is the difference between screw and scroll chiller compressor?

A: Screw compressors have more moving parts compared to scroll compressors, contributing to their rigid maintenance requirements. Scroll compressors, on the other hand, generally have fewer moving parts, contributing to their simplicity and easy maintenance.

Q: What can be used to improve the efficiency of a screw compressor chiller?

A: Improve chiller efficiency by removing evaporator thermal insulation. Contaminants circulating in the water system accumulate on the surface of the tubes in the evaporator. This thermal insulation prevents the absorption of latent heat into the chiller refrigerant system.

Q: Is a screw chiller a centrifugal chiller?

A: A screw type chiller is best for cooling small amounts of water to a moderate temperature. A centrifugal chiller is a type of chiller that uses centrifugal force to cool water. The water enters the machine through the inlet and then exits through the outlet pipe.

Q: What is the difference between screw chiller and centrifugal chiller?

A: Screw chillers: The electric motor directly meshes with the main rotor and auxiliary rotor to rotate at low speed. Centrifuge chillers: The electric motor drives the impeller to rotate at high speed through a pair of speed increasing gears.

Q: What is the difference between centrifugal and screw chillers?

A: There is a big difference in the capacity of screw chillers vs centrifugal chillers, as they cater to varying industrial needs. Screw chillers have a broader capacity. They can be used for a wide range of applications with varying compression ratios.

Q: Which is better screw chiller or reciprocating chiller?

A: Reciprocating chillers are more common and in general are cheaper than other compressor types, particularly for the smaller sized units. Screw chillers are the most expensive in first cost. At the same operating conditions.

Q: Which is better screw or scroll chiller?

A: In these industries, compressor systems are required to run continuously for several hours, which is why the screw compressor is the perfect fit, as it tends to support continuous usage without getting overheated. On the contrary, a scroll compressor is an ideal choice for indoor settings where loud noise is a problem.

Q: What is the capacity range of a screw chiller?

A: Screw chillers are available with capacity ranging from 30 to 800 tons. Screw chillers typically maintain design efficiency (kw/ton) at partial loads. The screw compressor can vary capacity in response to changing load, from 20 percent to 100 percent of capacity.

Q: What is air-cooled screw chiller?

A: On the other hand, air-cooled screw chillers employ screw compressors as the primary cooling technology. Both use ambient air as the heat rejection medium to remove heat from a space. They follow a refrigeration cycle that starts with a compressor acting on the refrigerant gas and increasing its temperature.

Q: Is a screw chiller positive displacement?

A: Screw compressors, also known as rotary compressors, are positive displacement compressors where the gas is compressed by direct volume reduction between rotating screws. Screw compressors are available in several designs including single screw or twin screw.
