Heating,cooling and humidity control,chilled water temperature from 5 degree celsius to 20 degree celsius,hot water Highest temperature can be 100 degree celsius.
What is Water Source Heat Pump
Water source heat pumps (WSHP) are one of the most efficient, environmentally-friendly systems available for heating and cooling buildings. High-efficiency, self-contained units are available in a variety of sizes and configurations and can be placed in virtually any location within a building. Each water source heat pump responds only to the heating or cooling load of the individual zone it serves. Commercial water source heat pumps can be applied to geothermal closed-circuit or open-well loops, or on a traditional boiler/tower loop system.
Benefits of Water Source Heat Pump
Energy Efficiency and Cost Savings
Water source heat pumps are an energy-saving powerhouse. Because WSHPs move heat rather than creating it, they require significantly less energy than traditional systems. Not only does the reduction in energy consumption lighten the load on power plants, but it also reduces greenhouse gas emissions.
Environmentally Friendly Choice
Choosing a water source heat pump is not just a smart financial decision but a responsible choice for the planet. WSHPs generate minimal greenhouse gas emissions because they rely primarily on the renewable energy present in natural water sources. This reduces the dependency on fossil fuels and minimizes the carbon footprint of the household or business.
Consistent, Reliable Heating and Cooling
One of the standout benefits of WSHPs is their ability to provide dependable temperature control year-round. Traditional HVAC systems often struggle in extreme temperatures, which can lead to uncomfortable indoor environments and costly repairs. However, because WSHPs draw from a relatively stable water temperature source, they are remarkably reliable even during the hottest summers and coldest winters.
Quiet Operation for a Peaceful Home
Traditional HVAC systems can be disruptive, especially when they kick on or operate at high capacity. In contrast, WSHPs are renowned for their quiet operation. They work without the noisy compressors and fans that characterize many other systems.
Optimal Indoor Air Quality
Poor air quality indoors can lead to health issues, but WSHPs contribute positively to indoor air quality, helping reduce airborne pollutants and allergens. With no fuel combustion involved, there are fewer particles and gases circulated within your indoor environment, improving the air you breathe.
Longevity and Durability of WSHP Systems
Water source heat pumps are built to last. Many WSHPs can provide 20 to 25 years of reliable service, while most conventional HVAC systems have a shorter lifespan. The durability of these systems also means less frequent replacement, which can be an unexpected yet significant cost-saver over the years.
-

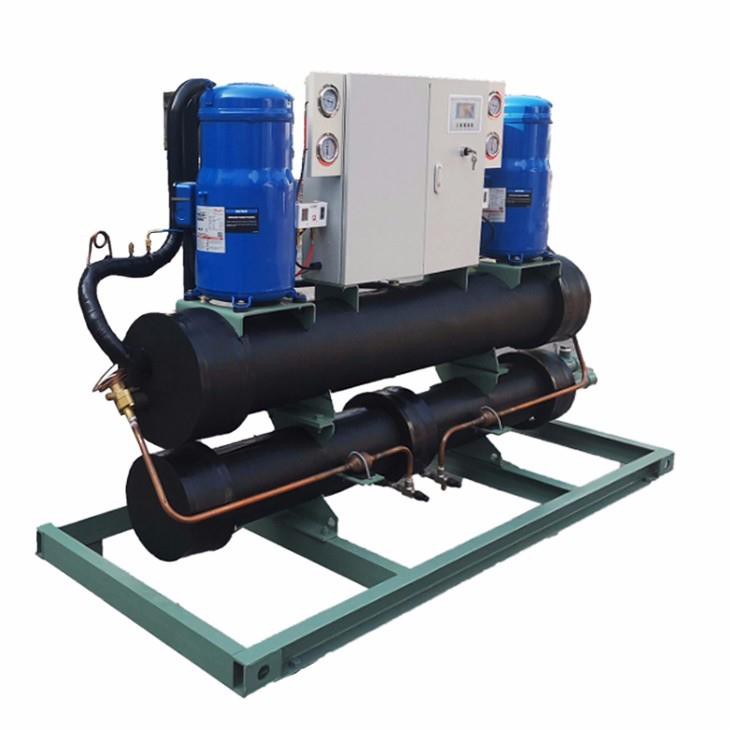

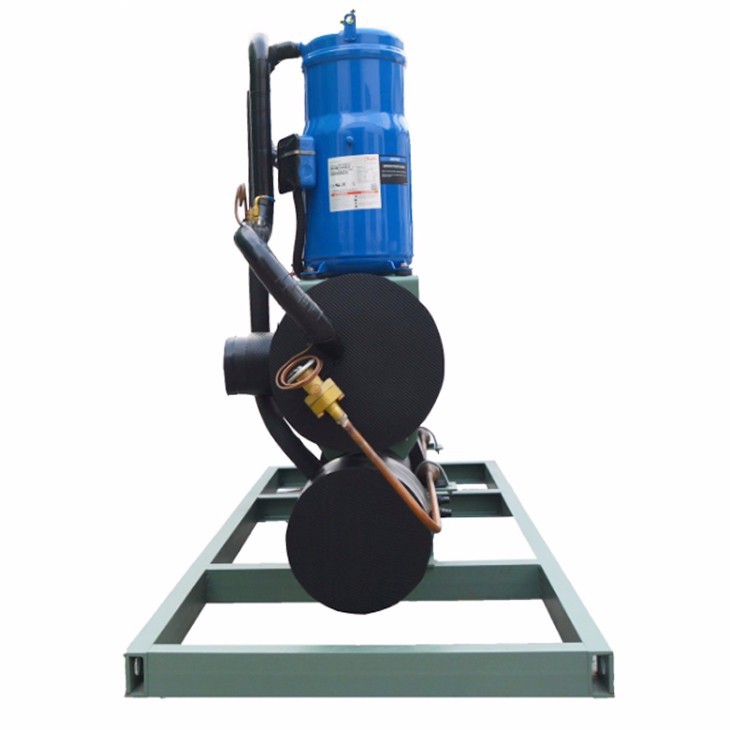

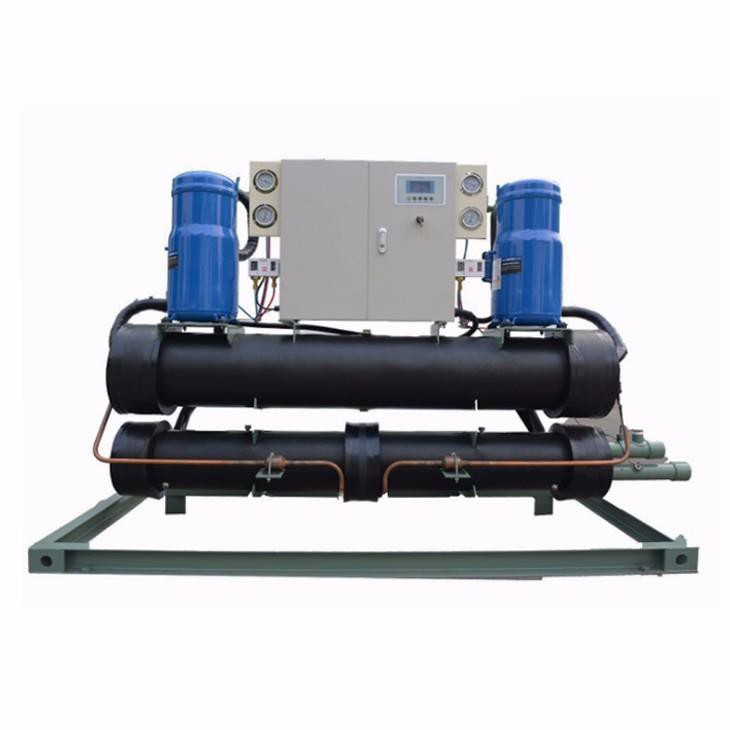

![Heating and Cooling Water Source Heat Pump]()
Heating and Cooling Water Source Heat PumpCooling system alike normal chiller unit,but it extracts and disspates heat by way of water,it is an option worth considering when your living area close to well,lake,other water source.read more
Why Choose Us
Excellent product quality
We take pride in our products because every major components requires the perfect combination of modern technology.
Rich experience in production
10 year experience in Chiller manufacture. Above 50% of our staff has more than 10 year experience in HVAC industry.
High quality
We distinguish ourselves in the chiller market by flexibility of design, by ensuring the prefect performance and by always putting our customer first.
After-sales service
We have professional technician, can provide Video /Phone Training, 24 hour online service. We will send technician to overseas if needed.
The primary function of a WSHP is to provide efficient heating and cooling by leveraging a stable water temperature:
Heating Mode
The heat pump extracts heat from the water and transfers it to the refrigerant. The refrigerant is compressed, increasing its temperature.
The heated refrigerant passes through a heat exchanger, releasing heat into the indoor air. The cooled refrigerant is then circulated back to absorb more heat from the water.
Cooling Mode
The heat pump extracts heat from the indoor air and transfers it to the refrigerant. The refrigerant releases the absorbed heat into the water through the heat exchanger. The cooled refrigerant is then circulated back to absorb more indoor heat.
Whatever system your heat pumps have, heat will be transmitted from the water to a middle plate heat exchanger. Through an intermediary circuit, the energy is transferred to the heat pump's heat exchanger, or evaporator, where a refrigerant absorbs it.
When the refrigerant warms up, it transforms from a liquid to a gas. The refrigerant may absorb heat from shallow waters, which is a perfect heat absorber. This is why water source heat pump works best in cold climates.
The refrigerant is compressed to raise the temperature to a more usable level, and when it has changed into a gas, it is then fed to a heat exchanger. The condenser can release heat that will warm your water and radiators. When the gas begins to cool, it condenses and transforms back into a liquid. After that, it is sent back via an expansion valve to restart the process.
In other words, WSHP works by transferring the compressor to the interior unit. It also swaps the outdoor coil with a heat exchanger that uses the water in the building loop instead of outdoor air. Finally, the entire process of WSHP working is the same as other heat pump methods once the heat energy has been introduced into the system.
Types of Water Source Heat Pump
Closed-Loop System
If there is a stable and sufficient body of water near your home, this form is definitely the one with the lowest cost. A supply pipeline will run through the ground, starting from your home, and ending in the water. It will meet the water supply from at least eight feet under the ground to avoid freezing in the winter. Coils must also be placed in the water source to ensure that it meets the minimum requirements in terms of volume, depth, and quality.
Open-Loop System
This system works to utilise a well or the surface of a body of water while the fluid in the heat exchange runs through the heat pump system. Once it has dispersed through the whole system, the water will return to the ground via a well, recharge well, or a surface discharge. This option is one that is only practical where there is a reasonable and consistent supply of clean water. Alongside this, you need to make sure that all of the rules and regulations that relate to groundwater discharge are completed.
Hybrid Systems
These systems tend to use geothermal resources, or a combination of these alongside natural air from outside. The hybrid systems tend to be placed in situations where the cooling needs exceed the heating ones. An example of this would be a standing column well. This variation of the open-loop system required one of more deep, vertical, wells. The water is brought up from the bottom of a standing column and then returned to the top. The bleed cycle system will cool the column while the heat is being rejected, and warm it up during the heat extraction period.
Components Of Water Source Heat Pumps
Heat exchanger: This component transfers heat from the water source to the refrigerant in the heat pump. The heat exchanger is typically made of copper tubes and aluminum fins, and is designed to be durable and corrosion-resistant.
Water pump: This component circulates water from the water source to the heat exchanger and back again. The variable frequency drive usually controls the water pump, which allows for precise control over the water flow rate.
Refrigerant circuit: This component consists of a compressor, condenser, and evaporator. It is responsible for transferring heat from the water source to the building’s heating and cooling system. The refrigerant used in the system is typically a blend of HFC and HFO refrigerants, which have a low global warming potential.
Expansion valve: This component regulates the flow of refrigerant from the evaporator to the compressor. It helps to maintain the desired temperature in the refrigerant circuit.
Control system: This component monitors and controls the operation of the heat pump, including the water pump, refrigerant circuit, and expansion valve. The control system can be programmed to adjust the heating and cooling output based on the building’s demand, helping to maximize energy efficiency.
A water source heat pump is usually the most efficient as the source temperature in winter is generally higher at a range of between 7 °C and 12 °C, however, lakes/rivers can also freeze in winter too depending on the geographic location and local weather patterns, therefore the source temperature could be less beneficial than it could be from the ground.
When moving water is used from either a stream or river the heat extracted is constantly replaced by warmer water that hasn’t been subject to local cooling from the heat pump operation. This can improve efficiency of the water source heat pump and can also prevent the water from freezing, an issue that can occur with still water.
This measurement calculates how efficient a heat pump is based on the amount of energy that’s inputted compared to the amount of energy that’s outputted. For example, if a water source heat pump uses one kW of electricity and three kW of heat is produced, the CoP will be four. A heat pump with a CoP of four will be more efficient than this. A water source heat pump generally has a CoP of around 6.0 (W/W 10/35C).
Application of Water Source Heat Pump
Residential Buildings: Water source heat pumps provide heating and cooling for homes, offering energy-efficient climate control by utilizing a nearby water source for temperature regulation.
Commercial Buildings: Commonly used in offices, retail centers, and hotels, water source heat pumps allow for zone-specific heating and cooling, reducing energy costs and enhancing indoor comfort.
Industrial: In factories and other industrial environments, water source heat pumps can be utilized for both climate control and process heating, supporting sustainable operations and lowering energy consumption.
Schools and Universities: Educational institutions benefit from water source heat pumps as they provide consistent temperature control across various buildings, helping to maintain a comfortable learning environment while reducing energy costs.
Healthcare Facilities: Hospitals and clinics use water source heat pumps to maintain strict temperature and humidity control, critical for patient care, medical equipment, and reducing overall operational costs.
The Difference Between Water Source Heat Pump and Geothermal Heat Pump
Here are four fundamental differences between water source and ground source heat pumps:
Heat Exchange Medium: Water source heat pumps use water bodies as their heat exchange medium, while ground source systems use the earth.
Installation and Environmental Considerations: Ground source systems require significant land for the ground loop system and are more invasive to install. Water source systems, on the other hand, necessitate access to a suitable water body. This may not be feasible for all locations.
Efficiency and Performance: Both systems offer high efficiency, but their performance can vary based on environmental factors. Water source systems can be more efficient in regions where water bodies maintain a relatively stable temperature. Ground source systems benefit from the earth's consistent temperature, making them extremely efficient regardless of air temperature fluctuations.
Maintenance and Longevity: Ground source heat pumps generally have fewer maintenance needs and a longer lifespan, as their components are protected underground. Water source systems may require more maintenance due to potential issues like sediment build-up or biological growth in the water.
Factors to Consider When Selecting Water Source Heat Pump
The first major factor in selecting a water source heat pump is determining whether you have access to a suitable water source. Before making a decision, evaluate the feasibility of using a natural water body, a well, or installing a closed-loop system on your property. Consulting a professional can help you determine the best option based on your location and water availability.
Just like any heating or cooling system, choosing the right size water source heat pump is critical for maximizing efficiency and comfort. To size a WSHP properly, you’ll need to calculate your home’s heating and cooling load, which depends on factors such as square footage, insulation levels, climate, window types, and more. This ensures you select the right size unit for optimal performance.
One of the main reasons choose water source heat pumps is for their energy efficiency. Look for WSHPs with high COP, EER, and HSPF ratings to ensure you’re getting a system that’s both energy-efficient and cost-effective. Energy Star-rated systems typically meet stringent efficiency standards and may also qualify you for rebates or tax credits.
The installation of a water source heat pump is more complex than a traditional air source heat pump and often requires specialized knowledge and equipment. While WSHPs can have higher upfront installation costs, they offer long-term savings through lower energy bills and reduced maintenance.
Water source heat pumps are known for their durability and longevity, often lasting 20 years or more with proper care. Proper maintenance will extend the life of your WSHP and ensure it continues to operate efficiently for many years.
How to Maintain Water Source Heat Pump
Inspect and Clean the Heat Exchanger
Regularly inspect the heat exchanger for any signs of dirt, debris, or scaling. Clean it using a soft brush or a specialized cleaning solution recommended by the manufacturer. This will ensure efficient heat transfer and prevent any blockages.
Check and Maintain Water Quality
Test the water quality in your system regularly. Look for pH levels, hardness, and contaminants. Use water treatment solutions to maintain optimal water conditions and prevent scaling, corrosion, and biofouling.
Ensure Pump and Motor Functionality
Inspect the pump and motor for any signs of wear and tear. Listen for unusual noises or vibrations. Lubricate moving parts as needed and replace any worn-out components to ensure smooth operation.
FAQ
We're well-known as one of the leading water source heat pump manufacturers and suppliers in China. Please rest assured to buy customized water source heat pump at competitive price from our factory. Contact us for more details.
