The heat emitted by the ordinary water-cooled chiller condenser is usually discharged to the surrounding environment by the cooling tower, which is a huge waste for places that need heat, such as hotels, factories, hospitals, etc., and it also brings waste heat pollution to the surrounding environment.
Heat recovery technology is a method to recover and reuse a large amount of waste heat discharged to the outside during the operation of the chiller. It is usually used for projects that require both cooling and heat. Its applications include building air conditioning, industrial process water, and hotel use hot water. It can save energy and reduce the operating noise of the cooling tower.
Working principle of chiller with heat recovery function

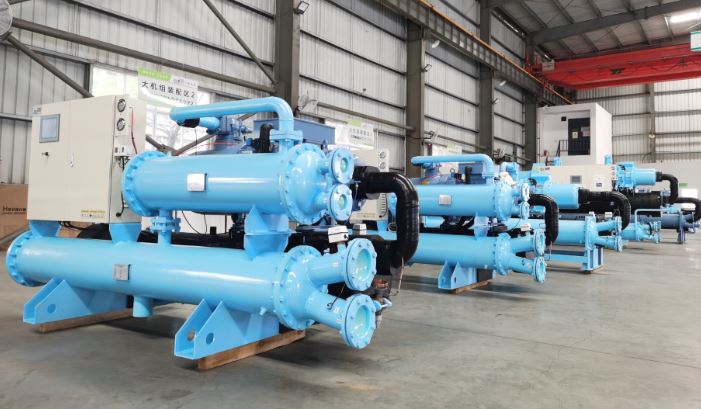

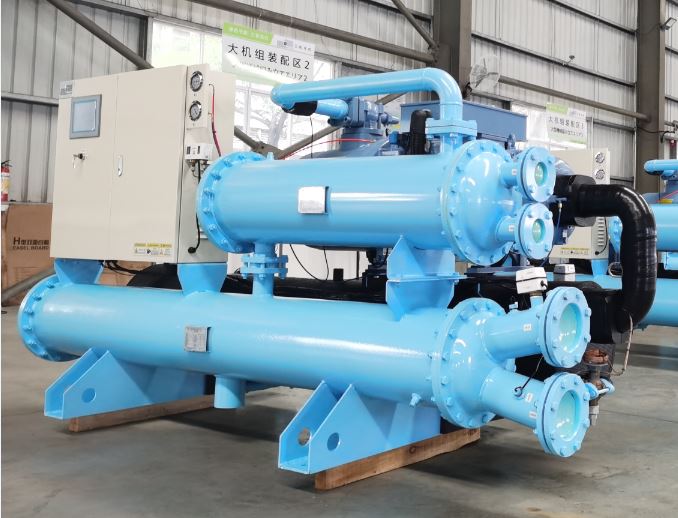

The heat recovery function is usually applied to SANHER medium-sized or above chiller, such as screw chiller. The components used in the unit are screw compressor, shell and tube heat recovery device, Condensers and evaporators.
Working principle : the compressor sucks in low-temperature and low-pressure gaseous refrigerant and compresses the refrigerant into high-temperature and high-pressure gas through the work of the compressor. After the gas enters the heat recovery unit of the chiller, part of the heat is released to the recycled circulating water through heat exchange ( The temperature of the circulating water used to recover the heat ), and then the refrigerant gas enters the condenser, and is completely cooled into a liquid refrigerant and passes through components such as a drying filter. The low-temperature and low-pressure refrigerant liquid is in the expansion valve. After adjustment, it enters the evaporator, absorbs the heat of the cooling medium, and converts it into a low-temperature and low-pressure gaseous refrigerant again, and then enters the next compression cycle process, thereby repeatedly cooling.
Application of heat reclaim chiller
-For domestic hot water
-Industrial Process hot water
-Laboratory humidity control or air preheating, etc.
