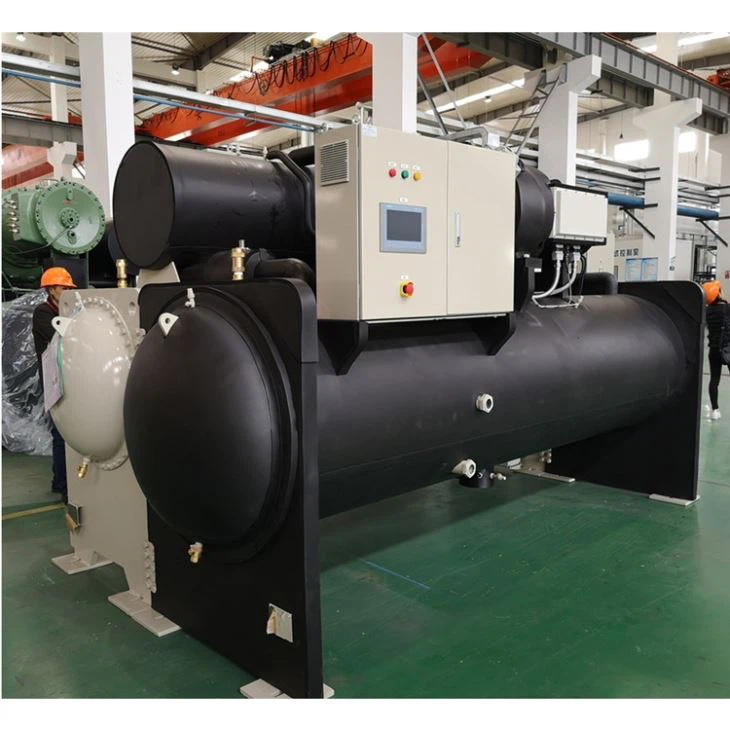

Alright, let's cut to the chase. When a Water Cooled Magnetic Chiller trips on overload, it's not being dramatic-it's screaming for help. Having shipped, commissioned, and troubleshooted these beasts for years, I'll break down why they hit that emergency stop.
What Exactly Are They

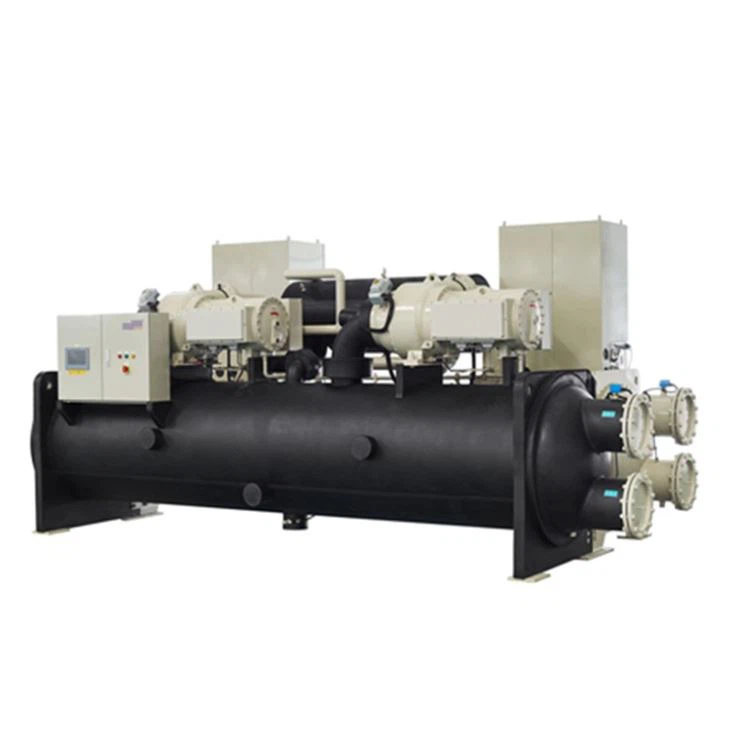

A centrifugal chiller is a substantial refrigeration setup crafted to extract substantial amounts of heat from water, producing chilled water. This chilled water is distributed across a building. It provides cooling through air handlers or fan coils.
The Core Problem
Overload protection kicks in when the compressor motor draws more electrical current than it's designed to handle. Think of it like revving your car's engine while slamming on the brakes-something's gotta give.
Top 4 Reasons Centrifugals Go Into Overload
Electrical Gremlins
- Voltage Sags/Spikes: Dirty power (unstable voltage) forces the motor to suck extra current just to maintain speed. Grid issues or faulty transformers are common culprits.
- Phase Imbalance: If one phase voltage drops even 2-3%, current in the other phases skyrockets. Found this a lot in older facilities with crumbling infrastructure.
Refrigerant Mayhem
- Overcharge: Too much refrigerant floods the compressor. Liquid refrigerant doesn't compress-it hammers components. Motor strains, amps surge.
- Undercharge: Surprise-too little refrigerant causes superheat to soar. Compressor runs hot, oil breaks down, friction jumps, and bam-overload.
Mechanical Strangulation
- Condenser Fouling: When scale, algae, or grime coat condenser tubes, heat can't escape. Refrigerant pressure soars, and the compressor fights like hell to push against it → current spikes.
- Frozen Evaporator: Low refrigerant charge or clogged filters can ice up the evaporator tubes. Suddenly, the compressor's pumping against a brick wall.
Control System Meltdowns
- Stuck Guide Vanes: If inlet guide vanes fail to open (jammed linkage, bad actuator), the compressor suffocates on startup. It's like trying to breathe through a coffee stirrer.
- VFD Glitches: Variable Frequency Drives (VFDs) misreading motor load or feedback signals can over-accelerate the impeller. More RPMs = more amps.
The Bottom Line
Overload protection isn't the problem-it's the last line of defense. If your chiller's tripping:
- Check the basics: Power quality, water flow, temperatures.
- Stop ignoring alarms: That "nuisance trip" is a warning shot.
- Invest in diagnostics: Modern chillers log fault histories-use them.
These machines are racehorses, not plow horses. Treat 'em right with clean power, clean water, and smart controls, and they'll run for decades. Skimp on maintenance? You're just renting time until the overload relay snaps shut.
