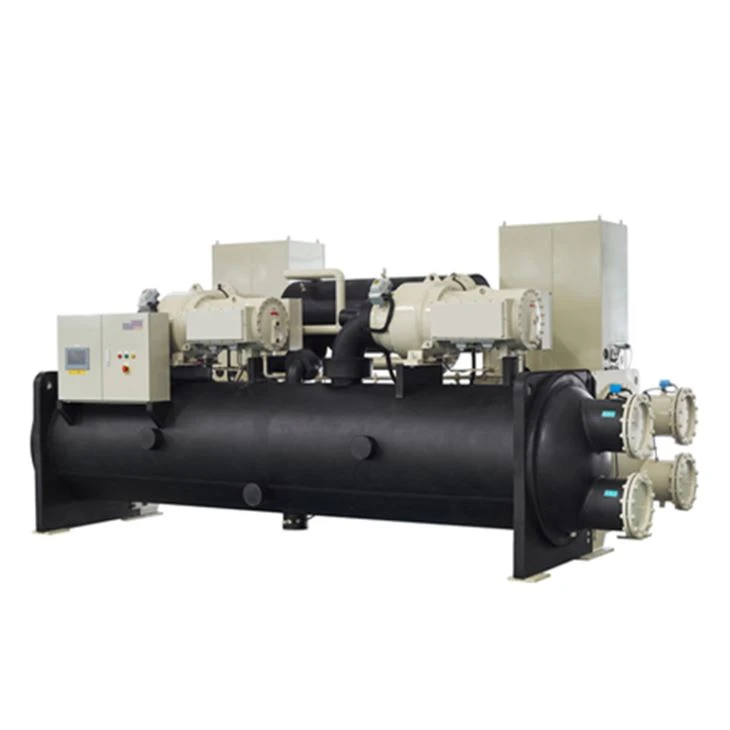

800 Ton Magnetic Chiller

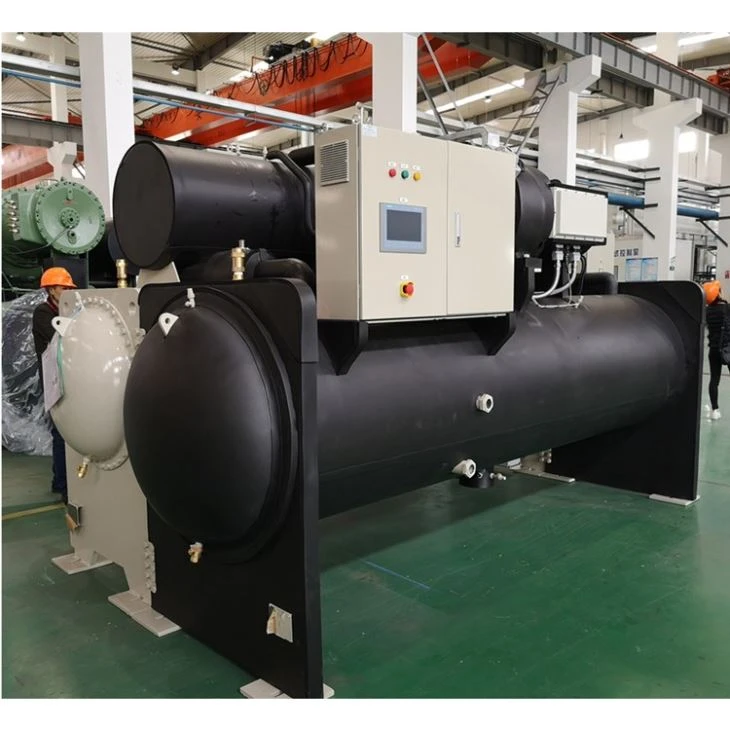

800 Ton Magnetic Chiller (3)

800 Ton Magnetic Chiller (4)

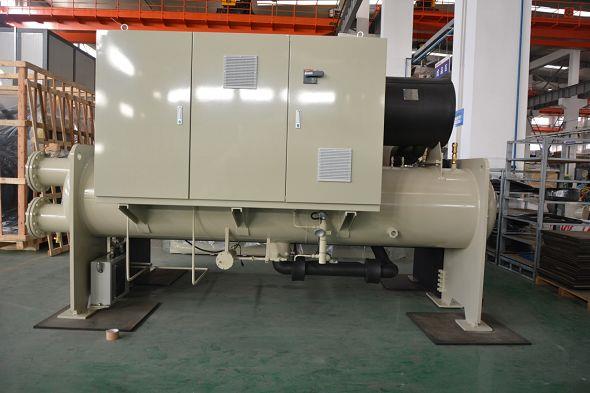

450 Tons Oil Free Magnetic Bearing Centrifugal Chiller(001)

Product Introduction:

Using compound orifice plate as flow control device so that the refrigerant flow rate can be adjusted in time without delay under variable load and conditions.

Send Inquiry

Description

Technical Parameters

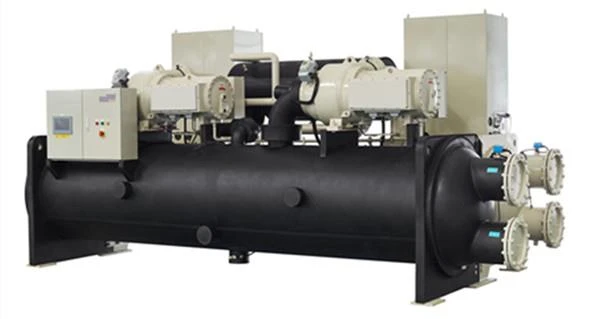

SANHER 800 ton magnetic chiller uses 2 Hanbell two stage semi-hermetic magnetic bearing centrifugal compressor, two refrigerant circuit. compact design, easy and fast to installation.

Features

1.Refrigerant which is a HFC working medium, and it is an internationally recognized environment-friendly refrigerant.

2.Using Hanbell two-stage magnetic bearing centrifugal compressor, to ensure the excellence performance.

3.High efficiency permanent magnet synchronous motor , efficiency up to 97%.

4.High efficiency airborne liquid cooled inverter whose harmonic distortion rate is less than 5%

5.High Efficiency falling film (spray type) evaporator, high efficiency shell-and-tube condenser.

6.Using compound orifice plate as flow control device so that the refrigerant flow rate can be adjusted in time without delay under variable load and conditions.

7.System oil-free design, high efficiency and energy saving without mechanical friction, the running noise is less than 74dB (A).

8.Strong resistance to electromagnetic interference can meet the requirements of different fields.

Technical Data

Model SHM-		800WD
Cooling Capacity	kW	2813
Input Power	kW	420
Full load COP	kW/kW	6.70
Full load COP	kW/RT	0.53
IPLV	kW/kW	11.58
Condenser
Water Flow	m3/h	605
Water pressure drop	kPa	65
Water connection	DN	300
Evaporator
Water Flow	m3/h	484
Water Pressure Drop	kPa	50
Water connection	DN	300
Dimension
A(Length)	mm	5500
B(Width)	mm	2550
C(Height)	mm	2650
Installation Dimension
D	mm	4340
E	mm	2050
Shipping weight	kg	11500
Operation weight	kg	13000
Refrigerant charge	kg	700
